Prismatic & Pouch Battery Packs

Prismatic and pouch LiIon battery packs reduce weight, cost, and packaging waste while allowing efficient space utilization compared to cylindrical cells, thanks to higher specific energy density. Prismatic cells offer rigid form factors with moderate capacity (20–30 Ah), while pouch cells deliver 90–95% packaging efficiency, though they require room for swelling during cycling.

---

Overview of Prismatic and Pouch Battery Packs

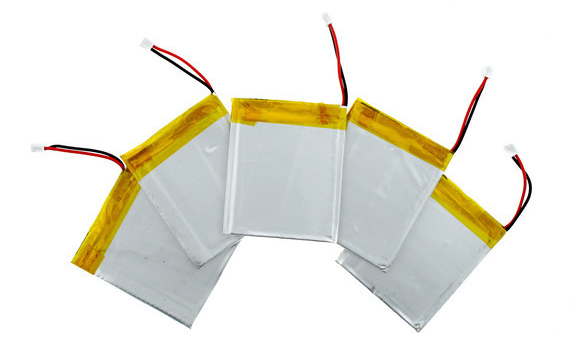

Prismatic Cells

• Introduced in the early 1990s to meet demand for thinner, cost-effective designs, resembling small boxes or bars.
• Found in mobile phones and larger applications as capacities scale from 400 mAh–2,000 mAh up to 20–30 Ah in welded aluminum housings.
• Internal electrodes are either stacked or flattened rolls in a rectangular can.
• Offer better space utilization but with slightly higher manufacturing cost, marginally lower energy density, less efficient thermal management, and vulnerability to shorter cycle life than cylindrical cells.

LFP Prismatic Cells
PN#		2614897-Fe-40	3914897-Fe-50	26148129-Fe-50	54173200-Fe-200	71173200-Fe-275
Typical Capacity (Ah) @0.2C		40	50	50	200	275
Nominal Voltage (V)		3.2	3.2	3.2	3.2	3.2
Dimension (mm)		148*27*97	148*40*103	148*27*129	173*53*207	173*71*207
Weight (g)		0.86	1.15	0.86	4.1	5.2
Internal Resistance (mΩ)		1	1	1	0.2	0.4
Discharge	Continuous Discharge	3C	3C	3C	3C	3C
Charge	Standard	0.5C	0.5C	0.5C	0.5C	0.5C
	Max.	1C	1C	1C	1C	1C
	End Voltage (V)	3.6	3.6	3.6	3.6	3.6
Temperature	Charge	0~45°C	0~45°C	0~45°C	0~45°C	0~45°C
	Discharge	-20~60°C	-20~60°C	-20~60°C	-20~60°C	-20~60°C
Life Cycle		2000 cycles	2000 cycles	2000 cycles	2000 cycles	2000 cycles

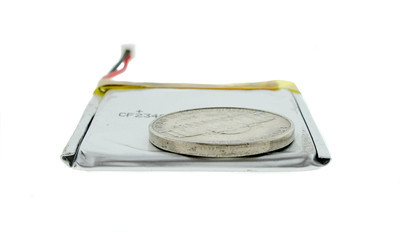

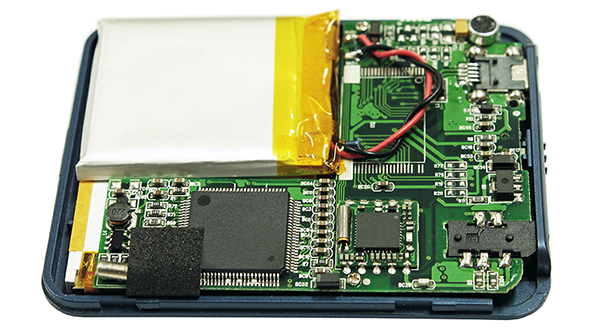

Pouch Cells

• Introduced in 1995, pouch cells use conductive foil tabs sealed in flexible envelopes for positive and negative terminals.
• Deliver 90–95% packaging efficiency by eliminating rigid metal enclosures—but require external support.
• Lightweight and flexible, but more susceptible to humidity, heat, external mechanical damage, and thermal-induced swelling.

LFP Pouch Cells
PN#		F706094	F134295	F7075130	F1046148	F1187021
Typical Capacity (Ah) @0.2C		2.5	3.3	4.5	6	8
Nominal Voltage (V)		3.2	3.2	3.2	3.2	3.2
Dimension (mm)		96*61*7.2	97*43*13	132*76*7.1	150.47*10	127*88*21
Weight (g)		75	97	130	146	225
Internal Resistance (mΩ)		5	4	4	3	3.5
Discharge	Continuous Discharge	30C	30C	30C	30C	30C
	Pulse Discharge	60C 2S	60C 2S	60C 2S	60C 2S	60C 2S
	End Voltage (V)	2.3	2.3	2.3	2.3	2.3
Charge	Standard	0.5C	0.5C	0.5C	0.5C	0.5C
	Max.	1C	1C	1C	1C	1C
	End Voltage (V)	3.6	3.6	3.6	3.6	3.6
Temperature	Charge	0~45°C	0~45°C	0~45°C	0~45°C	0~45°C
	Discharge	-20~60°C	-20~60°C	-20~60°C	-20~60°C	-20~60°C
Life Cycle		2000 cycles	2000 cycles	2000 cycles	2000 cycles	2000 cycles

Key Trade-offs

• Packaging Efficiency: Pouch cells achieve up to 95%, while prismatic cells are less efficient but more structurally rigid.
• Mechanical Durability: Prismatics have welded metal cases for structural integrity; pouch cells require added support to avoid damage.
• Thermal & Lifecycle Performance: Prismatic cells feature better thermal management but lower specific energy; pouch cells may suffer more from heat and humidity.

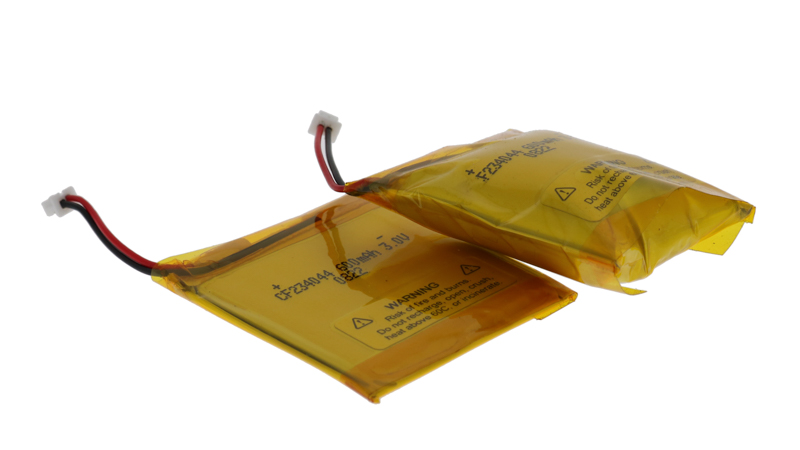

• Swelling Considerations: Pouch cell gases cause 8–10% swelling over 500 cycles; design must account for expansion.

Managing Swelling in Pouch Cell Packs

---

Frequently Asked Questions

Quick Links

• What cells are packaged in welded aluminum housings?
• What causes swelling in pouch cell batteries?
• How much packaging efficiency do pouch cells provide?
• What discharge rates do pouch cells support?
• What is the typical cycle life for these batteries?

What cells are packaged in welded aluminum housings?

Prismatic cells are typically enclosed in welded aluminum housings, offering capacities of 20–30 Ah.

What causes swelling in pouch cell batteries?

Swelling occurs due to gas generation during charge and discharge, which can increase cell thickness by 8–10% over cycles.

How much packaging efficiency do pouch cells provide?

Pouch cells offer packaging efficiency of 90–95%, the highest among battery pack designs.

What discharge rates do pouch cells support?

Pouch cells support continuous discharge rates of 30C and pulse discharge of 60C for 2 seconds.

What is the typical cycle life for these batteries?

Both prismatic and pouch cells are rated for approximately 500 charge/discharge cycles.

---
